PS5 HDMI Port Repair: How We Rebuilt Damaged Pads and Broken Motherboard Traces

PS5 HDMI Port Repair: Broken Pads and Traces Repair in Hamilton NZ

Is your PS5 HDMI port broken, loose or damaged? Does your PS5 turn on but show no signal or a black screen on your TV?

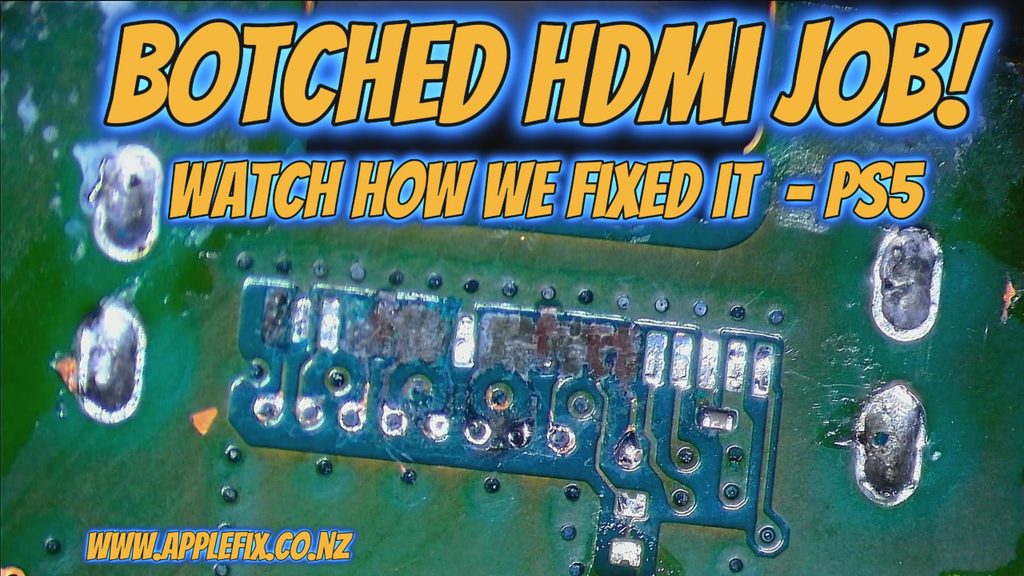

In this repair, we fixed a PS5 with a severely damaged HDMI port. The damage was not limited to the HDMI connector — several solder pads and motherboard traces were also broken.

This required advanced PS5 HDMI repair, broken pad repair, trace repair and microsoldering.

PS5 Turns On but No Signal or No Display

One of the most common problems PS5 owners search for is:

  • PS5 turns on but no signal
  • PS5 no display
  • PS5 black screen
  • PS5 HDMI not working
  • PS5 no picture on TV
  • PS5 HDMI port repair

A damaged HDMI port can prevent the PS5 from sending a video signal to the TV. If the port is loose, bent or physically damaged, it may need professional repair.

PS5 HDMI Port With Broken Pads

A simple PS5 HDMI port replacement is not always enough.

When an HDMI port is pulled, damaged or removed incorrectly, it can cause lifted pads, missing pads or damaged solder connections on the PS5 motherboard.

In this repair, the damaged pads had to be carefully rebuilt before the HDMI port could be correctly installed.

Common searches for this type of repair include:

  • PS5 broken pads repair
  • PS5 HDMI pads repair
  • PS5 lifted pads repair
  • PS5 HDMI port ripped off motherboard
  • PS5 motherboard repair

PS5 Broken Trace Repair

The PS5 motherboard contains tiny copper traces that connect the HDMI port to other circuits.

When the HDMI port is severely damaged, these traces can break or tear from the motherboard. Simply installing a new HDMI port will not fix the problem if the electrical connections underneath are damaged.

We carefully inspected the motherboard under a microscope and repaired the damaged connections using advanced microsoldering techniques.

This type of repair is commonly searched as:

  • PS5 broken trace repair
  • PS5 HDMI trace repair
  • PS5 motherboard trace repair
  • PS5 PCB repair
  • PS5 microsoldering repair

Advanced PS5 HDMI Microsoldering Repair

PS5 HDMI repair with damaged pads and traces requires specialist equipment and experience.

The repair process included:

  • Inspecting the damaged HDMI area under a microscope
  • Checking broken solder pads
  • Identifying damaged motherboard traces
  • Repairing the broken connections
  • Preparing the HDMI port area
  • Installing the replacement HDMI port
  • Inspecting the completed repair
  • Testing the PS5 display output

PS5 HDMI Port Repair After Physical Damage

PS5 HDMI ports can become damaged when:

  • The HDMI cable is pulled sideways
  • The console is dropped
  • The HDMI cable is forced into the port
  • The connector becomes loose
  • Previous HDMI repair attempts damage the motherboard

If you notice your PS5 HDMI cable is loose or the display cuts in and out, it is best to have it checked before more damage occurs.

PS5 Repair in Hamilton and Waikato

At Tech Engineers & AppleFix, we provide professional PS5 repair in Hamilton, including advanced motherboard and component-level repairs.

Our PS5 repair services include:

  • PS5 HDMI port repair
  • PS5 HDMI port replacement
  • PS5 broken pads repair
  • PS5 broken traces repair
  • PS5 no signal repair
  • PS5 no display repair
  • PS5 black screen repair
  • PS5 motherboard repair
  • PS5 microsoldering
  • PS5 no power repair
  • PS5 overheating repair
  • PS5 fan repair
  • PS5 disc drive repair
  • PS5 USB port repair
  • PS5 controller repair

Need PS5 HDMI Repair in Hamilton NZ?

If your PS5 HDMI port is broken, loose or damaged, or your PS5 turns on but has no signal, no display or a black screen, Tech Engineers can diagnose the fault.

We specialise in PS5 HDMI port repair, broken pad repair, broken trace repair, motherboard repair and advanced microsoldering.
